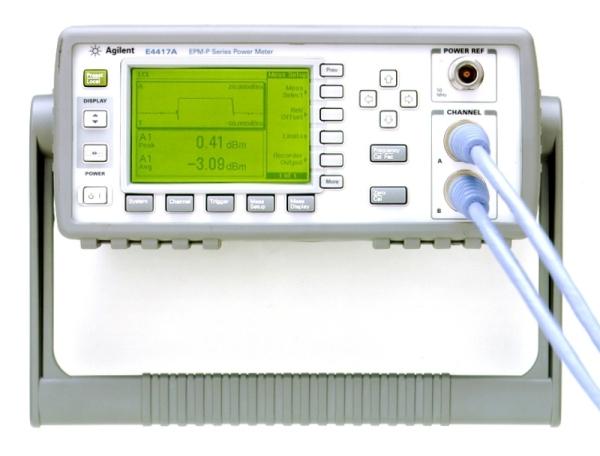

Agilent E4417A Power Meter HP E4417A

E4417A Agilent Power Meter.jpg

Agilent E4417A Power Meter 2CH, 110GHz HP E4417A. Proudly offered by BRL Test, established 2001. Get a Quote on the Agilent E4417A here .

We will calibrate and certify the HP/ AT E4417A power meter just prior to shipping so it will be guaranteed working accurately right out of the box. We can also offer repair services for your existing Agilent E4417A. What can BRL Test do for you today? Call us now for friendly and expert service. 1-866-275-8378­. Visit our company website BRLTest.com to explore our huge product catalog. Browse like kinds of power meters here.

BRL Test is celebrating it's tenth year! We invite you to join the thousands of happy and satisfied BRL Test customers.

Click now to get a quote on the Agilent / HP E4417A

Call us for a quote now! 1-866-275-8378

Used Test Equipment bnr.jpg

The Agilent E4417A dual channel EPM-P series power meter, for peak, average, peak-to-average ratio and time-gated measurements, using the E9320 peak and average power sensors. 20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals Time-gated and free run power measurements Free Analyzer Software software for complete pulse and statistical analysis, software is located In the Library 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000) Frequency range: 9 kHz to 110 GHz, sensor dependent Power range: -70 to +44 dBm, sensor dependent Display resolution: Selectable resolution of 1.0, 0.1,0.01, 0.001 dB in logarithmic mode, or 1 to 4 significant digits in linear mode. Offset range: ±100 dB in 0.001 dB increments, to compensate for external loss or gain Single sensor dynamic range E-series E9320 peak and average power sensors: 70 dB maximum (normal mode); 85 dB maximum (average only mode) E-series CW power sensors: 90 dB E-series E9300 average power sensors:80 dB maximum 8480 series sensors: 50 dB maximum
